RION Microphones
Dimensions available: 1", 1/2", 1/4"
Freq. Range from 5Hz to 100 kHz
Response: Free Field, Pressure
Voltage: 0, 200 V
Sensitivity (dB ref. 1V/Pa): from -21 to -48
Inherent Noise down to "2" dB
Temperature effect (dB/oC): down to -0.005 |
|
|
RION Preamplifiers
Dimensions available: 1", 1/2", 1/4"
Freq. Range from 5Hz to 100 kHz
Preampl.Type: IEPE, Standard
Bias Voltage: 0, 200 V
Inherent Noise down to 12 dB |
|

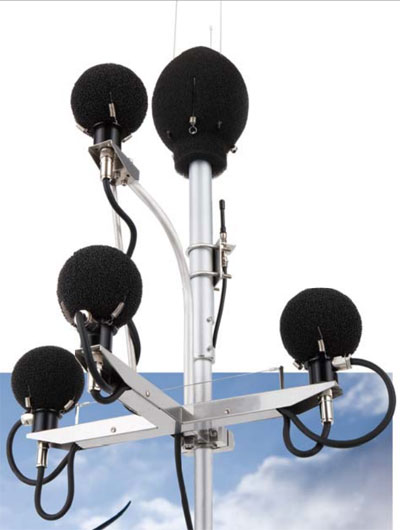

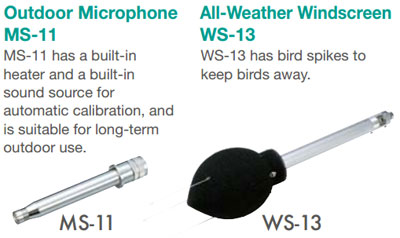

Rion Outdoor units
SCS Intensity probe IEC 1043 ICP inputs
Frequency Range (1/3 Octave)
8.5 mm Spacer: 250 Hz ~ 5000 Hz
12 mm Spacer: 160 Hz ~ 5000 Hz
50 mm Spacer: 63 Hz ~ 1250 Hz
Mics. Diameter 1/2 inch Free Field 40 mV/Pa
Microphone Phase Response Difference
<0.3º, 45 Hz ~ 500 Hz
<1º, 500 Hz ~ 2500 Hz
<2º, 2500 Hz ~ 6000 Hz |
 |
|
SCS Array Microphones
ICP Free Field "0"V
Sensitivity 12.5/50 mV/Pa 29-130 dB
Frequency Range 20 Hz ~ 20 kHz |
|
|
CAE-ICP microphones-preamplifier
Omnidirectional prepolarized - SMB connector
Nominal diameter 7mm (~1/4"), length 101mm
Sensitivity 30mV/Pa @ 94dBspl
3dB THD limit > 125dBspl
TEDS TransducerElectronic IEEE 1451.4 Template 27
Frequency response 10 Hz 20 kHz (calibration file included)
Dynamic Range: approx. 30...125 dBspl |
|
AP-TECH Acoustic Emission
|
| GT200 |
 |
| Sensitivity |
>60 dB re.1V/m/s2 |
| Frequency range: |
130 to 200 kHz |
| Temperature range: |
-40 to +150 °C |
| Weight: |
15 g | | |
|
| GT205 |
|
| Sensitivity |
>70 dB re.1V/m/s2 |
| Frequency range: |
40 to 100 kHz |
| Temperature range: |
-40 to +125 °C |
| Weight: |
45 g | | |
|
| GT250 |
| Sensitivity |
>90 dB re.1V/m/s2 |
| Frequency range: |
40 to 100 kHz |
| Temperature range: |
-40 to +150 °C |
| Weight: |
80 g | | GT300 |
|
| Sensitivity |
>50 dB re.1V/m/s2 |
| Frequency range: |
100 to 800 kHz |
| Temperature range: |
-40 to +150 °C |
| Weight: |
15 g | | |
|
| GT350 |
| Sensitivity |
>75 dB re.1V/m/s2 |
| Frequency range: |
100 to 800 kHz |
| Temperature range: |
-40 to +125 °C |
| Weight: |
15 g | | |
|
