SpectraPLUS-DT

• Hardware Supported: Data Translation DT-9800 series
• Sampling Rate: highest rate supported by Data (2.0 MHz using DT-9832A)
• Frequency Span: Up to 1/2 of selected sampling rate

• Sampling Precision: 8, 16 or 24 bit (hardware dependent)
• Maximum Channels: 16 (hardware dependent)
• Selectable Input Voltage Range (gain), AC or DC coupling, IEPE Current source, Single Ended or Differential Inputs (hardware dependent)
• Tachometer input channel support: Plot RPM versus Time as well as dedicated RPM display window.
• Triggering: Analog or TTL with user Accept/Reject option.  Selectable threshold, channel and delay. Edge or Level detection.
• Run Control: automatically stop after user selectable FFT count or time limit
• Modes: Real-Time, Recording, Post-Process
• Post-Process Editing: Cut, Copy, Paste, Play, Play Special, Mute, Gain Adjust, DC Offset, Filter
• Digital Filtering Options: Low Pass, High Pass, Bandpass, Notch or User defined filter shape
• Hard Disk Recording: Automatic rollover when Wave file size limit reached.

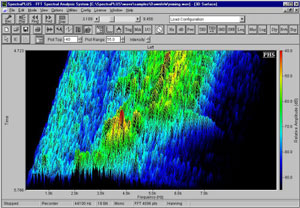

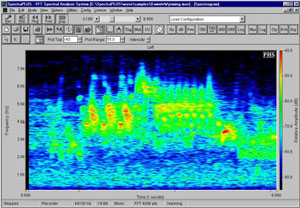

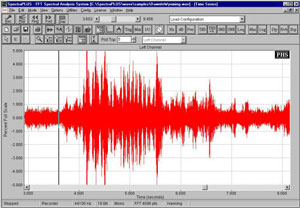

• Displays: Time Series, Spectrum, Phase, 3-D Surface Plot, Spectrogram
• Data Views: Popup window of underlying data values.

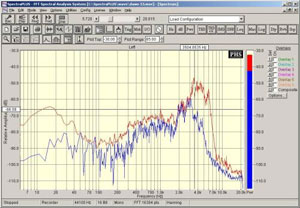

• Spectral Overlays: Up to 6 simultaneous overlay traces, unlimited save and retrieve from hard disk
• Composite overlay: average of any selected overlays or the difference between any two overlays.
• Video Zoom: Arbitrary Zoom In to any portion of overall frequency or time span
• Auto Scaling
• Cursor Measurements: Absolute, Differential (Ctrl key), Harmonic cursors (Shift key), Sideband cursors (Ctrl + Shift key)
• Right Click Action Menus: Various Cross display functions, Inverse FFT, Cepstrum, Smooth Spectrum, Expand and other Edit functions
• FFT Sizes, 32, through 1,048,576 pts (in powers of two increments)
• Overlap Processing: Up to 99% of FFT size in Post Processing mode
• Smoothing Windows: Bartlett, Blackman, Flat Top, Hamming, Hanning, Kaiser, Parzen, Triangular, Uniform, Force, Exponential, Gaussian
• Averaging Modes: 1) Free Run with selectable block size. 2) Sound Level Meter mode (Off/Fast/Medium/Slow/Forever)
• Averaging Types: Exponential, Linear or Vector moving average
• Peak Hold: live peak hold with selectable timeout
• Composite Channel operations: Average, Cross Spectrum, Real and Complex Transfer Functions, Coherence
• Amplitude Axis Scaling: Linear, Logarithmic or Log Magnitude.  Power Spectral Density (PSD) option
• Frequency Axis Scaling: Narrowband Linear, Narrowband Logarithmic, 1/1, 1/3, 1/6, 1/9, 1/12, 1/24, 1/48 or 1/96 Octave
• Spectral Weighting: Flat, A, B, C ANSI weighting curves
  Transducer Compensation: Independent compensation for each channel
• Markers: Up to 8 user defined markers with user customizable labels
• Calibrated Inputs (Volts, Millivolts)
• Calibrate directly by specifying transducer sensitivity (mic, hydrophone, accelerometer, force) or calibrate to an external reference source.
• Amplitude Calibration: V, mV, dBV, dBmV, dBu, SPL or PA (in air or water),
• psi, or custom units
• Vibration Measurements: Acceleration (G), Velocity (ft/sec, in/sec, mils/sec, mm/sec), Displacement (ft, in, mils, mm)
  Independent Calibration and Scaling: each channel can be scaled and calibrated independently
• Signal Generator: Pink Noise, White Noise, Tone Burst, Noise Burst, 1 kHz Tone, Multiple Tones, Frequency Sweep, Frequency Step, Level Sweep, IMD test tones, Pulse, Sawtooth, Triangular, Squarewave, User Defined (from .WAV source). DTMF, Digital Zero
• Utility Measurements: Peak Frequency, Peak Amplitude, Total Power
• Distortion Measurements: THD, THD+N, SNR, IMD

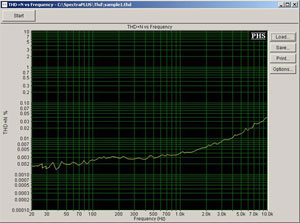

• THD+N versus Frequency utility - quickly and conveniently measure the distortion characteristics of a device over a range of frequencies.  Results are shown on a semilog/log plot and can be saved/loaded from disk or printed.
• Acoustic Tools: Reverberation Time (RT-60), Equivalent Noise Level (Leq, LeqT, Lsel, Lpk, Lmax, Lmin, L10, L50, L90
• Automation Tools: COM based Application Programming Interface (API).  Data Logging - output text file (per channel) containing selected spectral parameters + time-stamp.
• Import/Export: .WAV, ASCII, and Binary file formats
• Configuration Files: Store and recall common analyzer test setups from disk. Quick load from toolbar
• Color Printing: All displays plus annotation, comments, and margin control
• Clipboard support: WAV segments, tabular data and bitmap images

.
