| < Specifiche> |
| ¦Conformità agli standards |
IEC 61672-1: 2002 Class 1
ANSI S1.4-1983 Type 1
ANSI S1.43-1997 Type 1
JIS C 1509-1: 2005 Class 1
CE Marking (EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC), WEEE Directives, Chinese RoHS (export model for China only) |
| ¦Funzioni di misura |
Misura simultanea dei parametri elencati, con selezione di costanti di tempo e ponderaiozni i nfrequenza |
| 1.Processi (canale principale) |
1) Instantaneous sound pressure level: Lp
2) Equivalent continuous sound pressure level: Leq
3) Sound exposure level: LE
4) Maximum sound pressure level: Lmax
5) Minimum sound pressure level: Lmin
6) Percentile sound levels: LN (1 to 99 %, 1 % Step: Minimum 5 values,calculated from Lp or Leq 1s) |
| 2.Processi (canale addizionale "sub")) |
1) Instantaneous sound pressure level: Lp |
| 3.Processi addizionali |
uno dei seguenti processi può essere addizionato ai precedenti:
1) C-weighted equivalent continuous sound level: LCeq
2) C-weighted peak sound level: LCpeak
3) Z-weighted peak sound level: LZpeak
4) The power average of the maximum level of each 5 second interval: LAtm5 |
|
The frequency weighting for the additional processing synchronizes with the frequency weighting
of the sub-channel, so when the sub-channel has A-weighting, LAtm5 can be selected.
When C-weighting (Z-weighting ) is selected, the additional processing LCeq and LCpeak (LZpeak) are selectable. |
| 4.Processi simultanei |
Misure parallele e data-logging di:
Logging with an interval of 100 ms: LXY
Logging with an interval of 1 s to 24 h (selectable in steps of 1 s):
LXeq and LAIeq, LXE, LXYmax and LAImax, LXYmin, LAN, LCpeak and LZpeak, LAtm5
X = Frequency weighting for A, C and Z
Y = Time weighting for F, S and ´ |
|
N: Four exceedance values selectable 1 to 99 % in steps of 1 % and one value selectable 0.1 to 99.9 % in steps of 0.1 %
(Available when the unit set on A-weighting and FAST) |
| ¦Tempi di misura |
10 s, 1, 5, 10, 15, 30 m, 1, 8, 24 h, and manual (maximum 24 h) |
| ¦Microfono |
|
| 1.Type |
UC-59 |
| 2.Sensitivity level |
-27 dB |
| ¦Intervalli di misura |
A-weighting: 25 dB to 138 dB
C-weighting: 33 dB to 138 dB
Z-weighting: 38 dB to 138 dB
C-weighting peak sound level: 55 dB to 141 dB
Z-weighting peak sound level: 60 dB to 141 dB |
| ¦Rumore autogenerato |
|
| A-weighting |
< 17 dB or less |
| C-weighting |
< 25 dB or less |
| Z-weighting |
30 dB or less |
| ¦Intervallo in frequenza |
20 Hz to 20 kHz |
| ¦Ponderazioni in frequenza |
A, C, and Z |
| ¦Costanti di tempo |
F (Fast) and S (Slow) |
| ¦Dinamica |
Single range (dynamic range: 113 dB) |
| 1.Bar graph display |
Max. 110 dB (20 to 130 dB) |
| 2.Switching of bar graph display |
Set the upper/ lower limit in 10 dB increments |
| ¦Misura del valore efficace RMS |
Digital processing method |
| ¦Tempo di campionamento |
20.8 µs (Lp, Leq, LE, Lmax, Lmin, Lpeak : sampling frequency: 48 kHz)
100 ms (LN ) |
| ¦Calibrazione |
Measurement Law: electrical calibration performed according to IEC and JIS standards, using internally generated signals: acoustic calibration performed with the NC-74. |
| ¦Funzioni di correzione |
|
| •Windscreen correction |
Compliant with IEC 61672-1 and JIS C 1509-1 standards when the windscreen is installed |
| •Diffuse sound field correction |
Correction of frequency characteristics in order to comply with standards (ANSI S1.4) in diffuse sound field |
| ¦Start-Stop misure |
La misura può essere programmata per iniziare ad un orario particolare, con un ritardo programambile dallo "Start" (OFF, 1, 3, 5 or 10 s) oppure con l'utilizzo di un trigger |
| ¦Funzione di retro-cancellazione |
Premendo il tasto PAUSE sipossono escludere i precedenti 0, 1, 3 o 5 s dimisura |
| ¦Display |
Backlit color TFT LCD display WQVGA (400 x 240 dots)
*LCD with touch panel (Capacitive Touch Panel) |
| 1.Aggiornamento del display numerico |
1s |
| 2.Aggiornamento del display grafico |
100 ms |
| ¦Memoria |
|
| 1.Manuale |
Data for measurement results are stored manually in single address increments |
| •Dimensione memoria |
Internal memory: max. 1 000 sets
SD Card: depends on the capacity of the SD Card*1 |
| 2.Auto*2 |
TUtti i valori di Lp mode e quelli processati Leq mode sono memorizzati i continuo oa ad intervalli selezionati |
| •Lp ciclo di campionamento |
100 ms, 200 ms, 1s, Leq 1s |
| •Leq ciclo di campionamento |
10 s, 1, 5, 10, 15, 30 ms, 1, 8, 24 h |
| •Tempo di misura |
Max.1 000 h (depends on the capacity of the SD Card)*1 |
| ¦Richiamo dati da memoria |
Allows viewing of stored data |
| ¦Setup memoria |
Fino a 5 configuraiozni - Start con setup memorizzati anche su SD card |

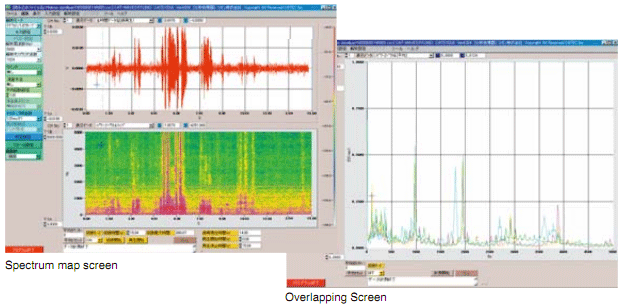

| ¦Registrazione audio*3 |
|
| 1.File formato |
Uncompressed waveform WAVE file |
| 2.Campionamento |
48 kHz, 24 kHz or 12 kHz |
| 3.Dimensione dati |
24 bit o 16 bit |
| ¦Uscite |
|
| 1.DC output |
Output DC signals using a frequency weighting characteristic selected by processing |
| •Output voltage |
2.5 V, 25 mV / dB at bar graph display full scale |
| 2.AC output |
Output AC signals using a frequency weighting characteristic selected by processing or by A, C, Z-weighting |
| •Output voltage |
1 V (rms values) at bar graph display full scale |
| 3.Comparatore*2 |
Uscita open-collector attivata al superamento di soglia
(max. applied voltage 24 V, max. current 60 mA, allowable dissipation 300 mW) |
| ¦USB |
Allows USB to be connected to a computer and recognized as a removable disk
Allows USB to be controlled via communication commands |
¦RS-232C
communication |
Allows for RS-232C communication via use of a dedicated cable |
| ¦Data in streaming continuo*2 |
|
| 1.Tipo di dati |
|
| •Valori istantanei |
Lp |
| •Valori processati |
Leq, Lmax, Lmin, Lpeak |
| 2.Velocità di uscita |
100 ms, 1 s |
| ¦Stampa |
Printing of measurement results on dedicated printer DPU-414 |
| ¦Alimentazione |
Four IEC R6 (size AA) batteries (alkaline or rechargeable batteries) or external power supply |
| 1.Batterie |
Alkaline battery LR6 (AA): 26 h Ni-MH secondary battery: 25 h At the maximum |
| 2.AC adapter |
NC-98C |
| 3.Alimentaizone esterna |
5 to 7 V (rated voltage: 6 V) |
| 4.Consumo |
Approximately 90 mA (normal operation, rated voltage) |
| ¦Condizioni ambientali |
|
| 1.Temperatura |
-10 to +50 ? |
| 2.Umidità |
10 to 90 % RH (non-condensing) |
| ¦Protezione polvere e acqua |
IP code: IP54) |
| ¦Dimensioni |
Approx. 250 (H) x 76 (W) x 33 mm(D)/ Approx. 400 g (with batteries) |
| ¦Accessori inclusi |

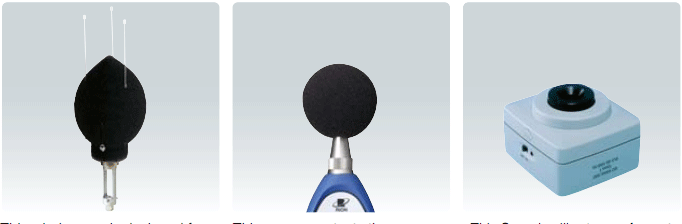

Borsa x 1, Windscreen WS-10 x 1, Windscreen fall prevention rubber x 1, Hand strap x 1, LR6 (AA) alkaline batteries x 4 |
|
*1 Use Rion fully guaranteed products |
|
*2 NX-42EX required (sold separately) |
|
*3 NX-42WR required (sold separately) |
|
*4 Protection against harmful dust and water splashing from any direction |
|
* Windows is a trademark of Microsoft Corporation |
|
* Specifications subject to change without notice. |
