Real-Time & Wireless Environmental Monitoring

A New Concept and New Technologies to Measure, Analyse, Storing and Sending of data of Environment Quality in multi-parameters configuration.

Web based configuration and monitoring interface, Abundant on-board storage, Run custom programs on-board for autonomous operation, Wireless sensors, Autopowered, Solid-state elements, Mems, etc.

Customized solution to adapt to any circumstance of monitoring in big and small town, for traffic, city-train, high speed train, harbour, internal living, public place, garden. An integral part in Urban design, Soundscape, City monitoring.



9077SCS-9077 & CityNoise

represent the next evolution of the EnviNetWork project (upon directions of Environmental Protection Agencies and Universities in Italy North-east) with the goal to develop low-cost and low power Multi-parameter Environmental Monitoring Systems using software released under GNU-GPLv3 license and Creative Commons CC-BY-SA. The main application of the SCS-9077 is to monitor the territory and make all data available to a NetWork (Citynoise TM), either for professional, private or public access to data. Two are the specific and unique features of the system: the proprietary data-base technology which allows to keep all-way synchronized locally stored data (inside each station) with the central/common data-base within a professonal studio, public office or Surveillance town center, and the wireless characteristic of all sensors and data transmission.



You can choose how to operate the system:

  1. Local data storage inside SCS9077 and download via LAN, WiFi, FTP
  2. Private Point-to-point conneciton between NMT station and your PC, featuring Real time data transmission or at pre-defined time interval, or via ftp request
  3. WEB connection GPRS-UMTS and use of CityNoise cloud

Main applications SCS9077(2)-CityNoise

City monitoring, traffic control, public area protection

Video-audio surveillance

Highway and railways monitoring

Port and Airport monitoring

Eolic farms monitoring

Production site noise monitoring

Working place, infrastructures and building construction area

Recreation area, Touristic and Historical site, Soundscape

EU Directive 49 – information to public

Interface to Predicition Softwares for Noise mapping and Air-Pollution cartographies

Rotating machines surveillance: noise, vibration, etc.



Additional Parameters and more Specific applications:

Noise source location

Noise source recognition

Audio-Video recording

GPS refernce

Building vibration

Meteo data

CO, NOx, SOx

PM 2.5 and PM 10

Traffic counter, vehicle speed and category

Solar radiation

Oxidation-Reduction, pH, Temperature in civil structures

Fuel dilution

Indoor or outdoor parking control

Current and Voltage, electrical consumption

Water, Electricity, Gas counters control

Monitoring of lifting devices (Elevators, cranes)



(2) SCS9077 are dupplied with standard Rion Sound Level Meter and RT Analyzer NL-52 and Meteo Stations Davis Vantage-PRO. However, the stations are designed to support SLM and RTA of other trade-marks (01dB, Cesva, Norsonic, B&K, etc.). Not all functions-parameters might be availabe upon the instrument type.



scs9077-fonometri







Environmental Noise Monitor(1) and other parameters



NMT Stations SCS9077

&

Cloud CityNoise



Noise Monitor SCS9077 per Rumore autostradale

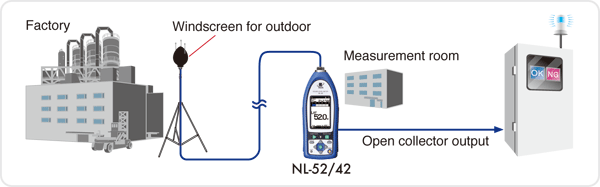

Monitoraggio industrie con funzione automatica di controllo di soglia incorporata nel Rion NL-52

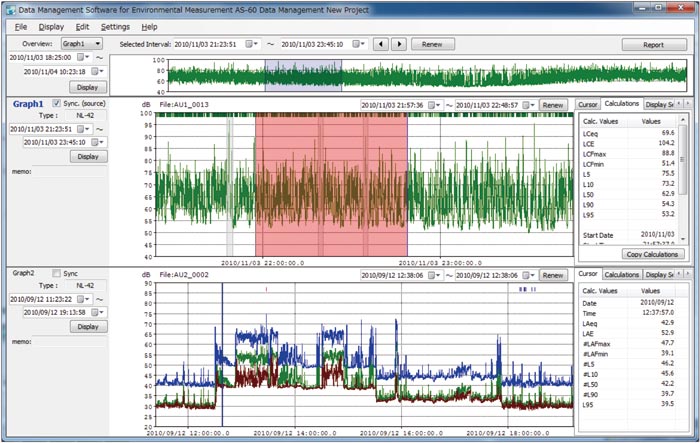

Software trattamento dati in post processo



(1) Continous Noise Monitor using Class 1 Sound Level Meters (EN61672, EN60260)

Main fatures:

audio-video streaming, meteo data, traffic counter.

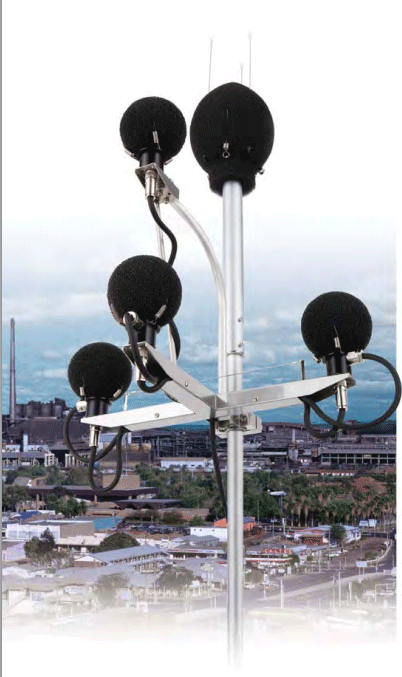

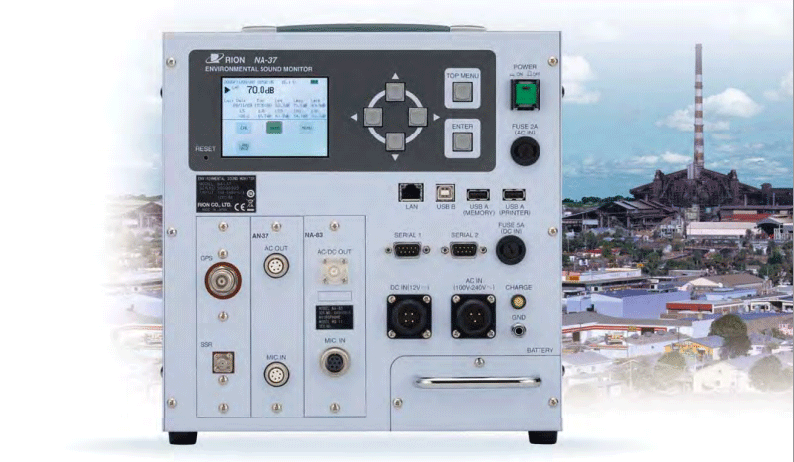

rion-na37rion-5mics

RION Noise Monitor System with source localisation features
